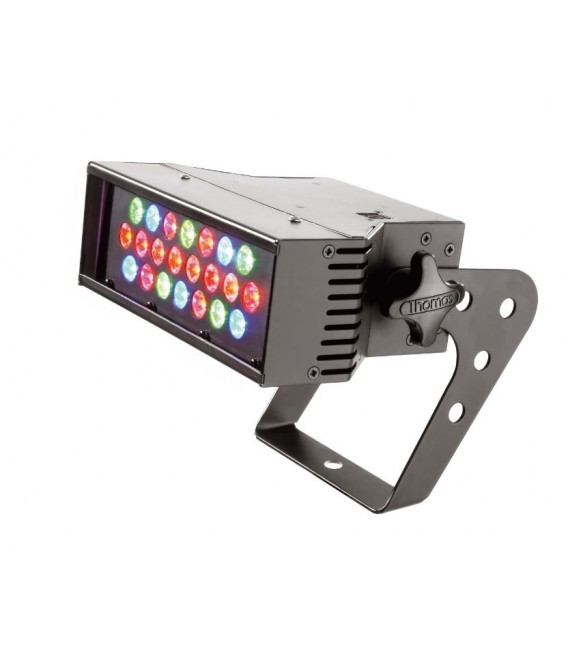

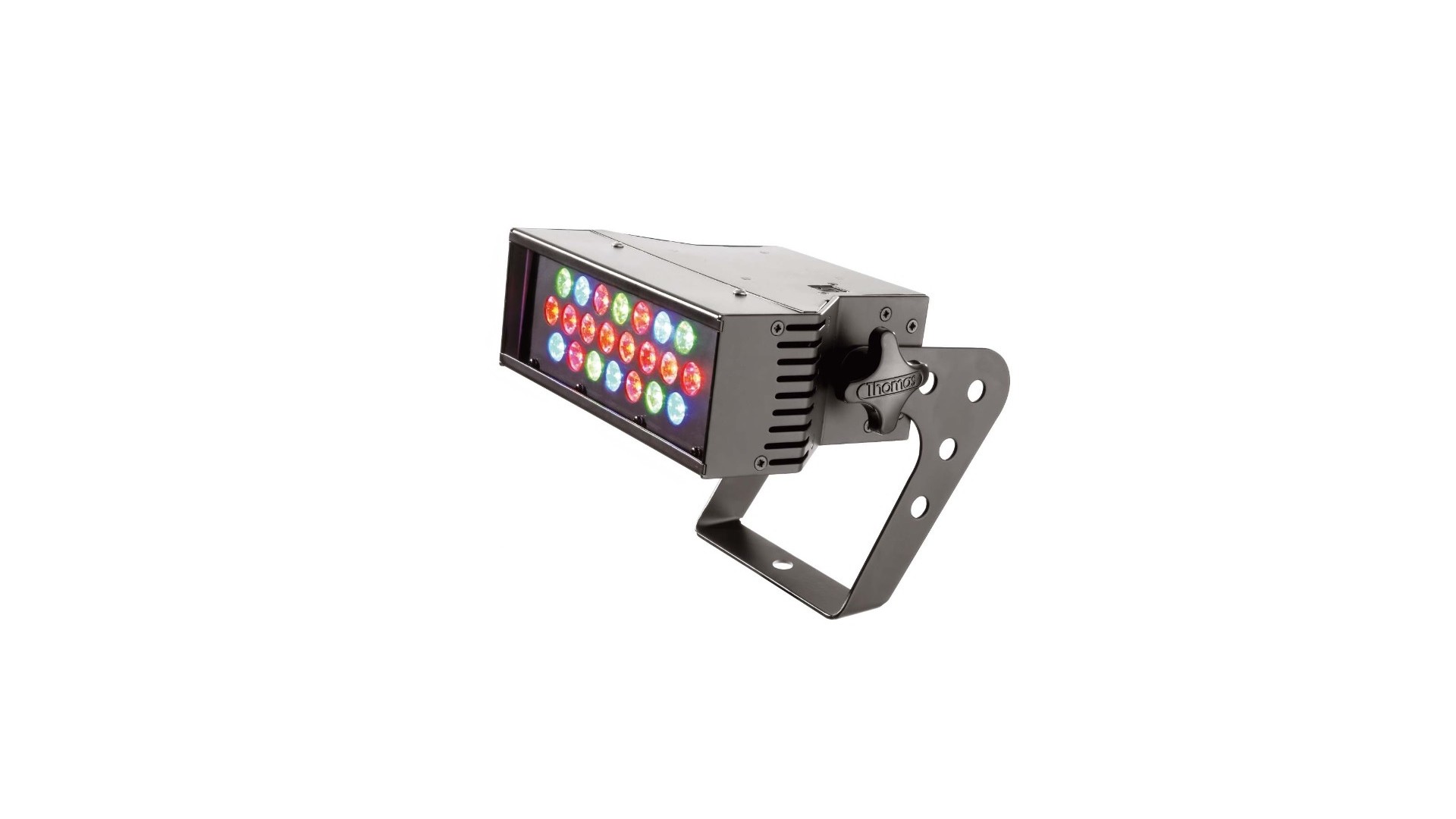

PixelLine Micro W

Le Micro W est un petit projecteur wash discret mais efficace. Il intègre un générateur d'effet et un mode master/slave pour pouvoir être contrôlé plus facilement.

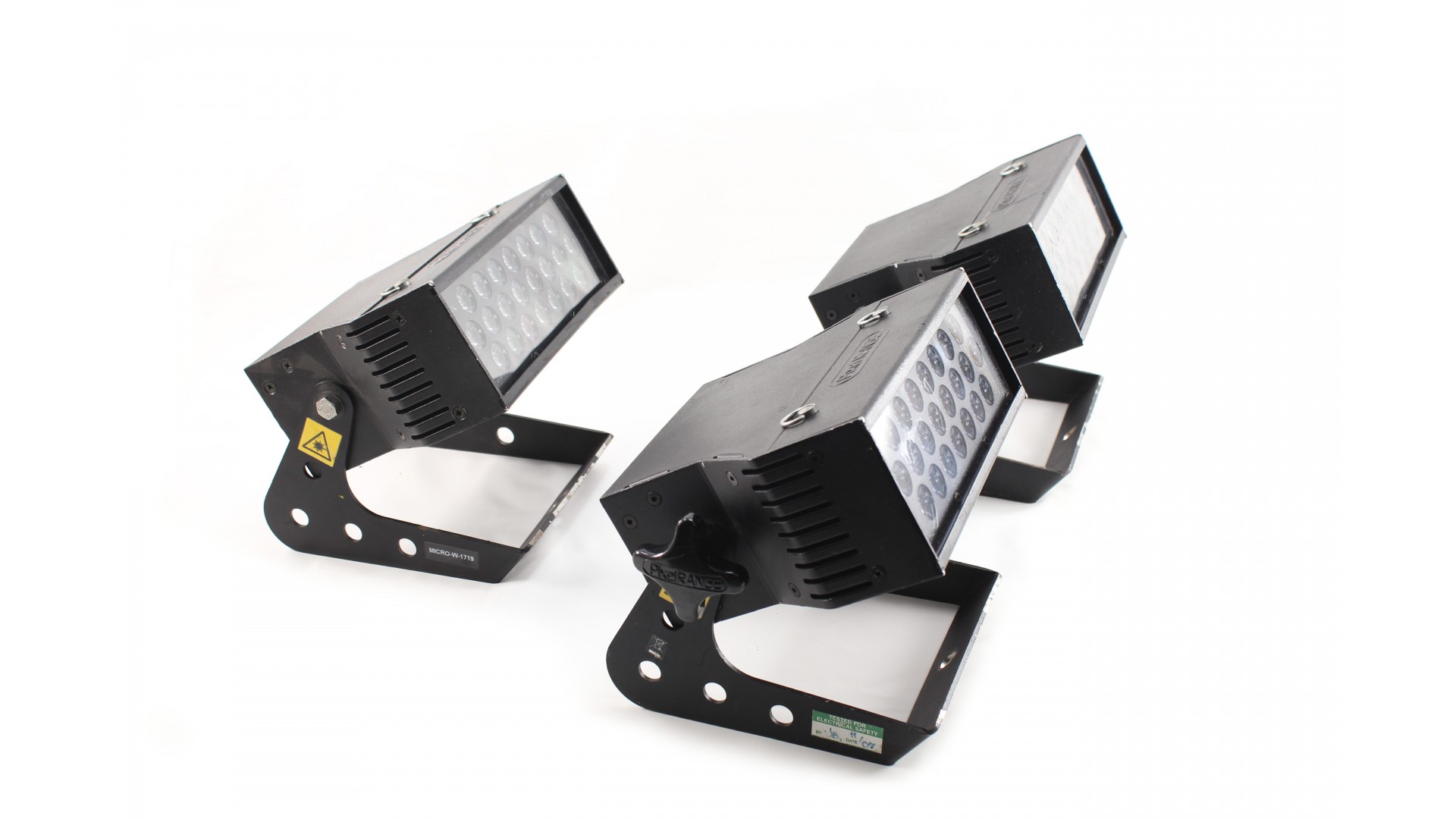

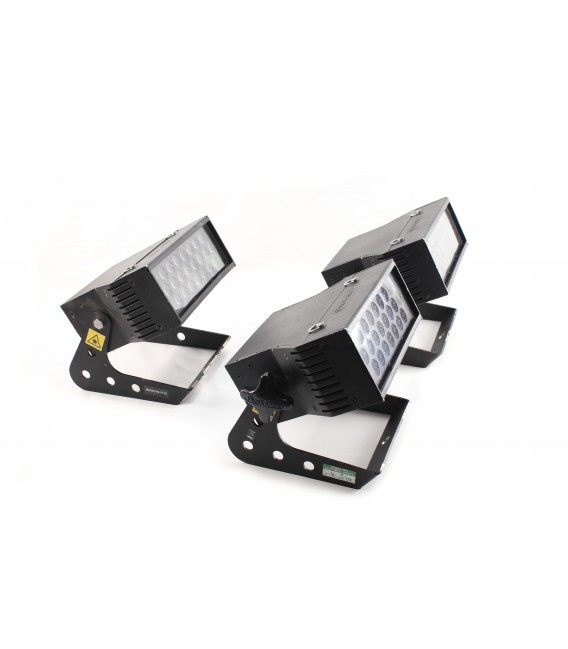

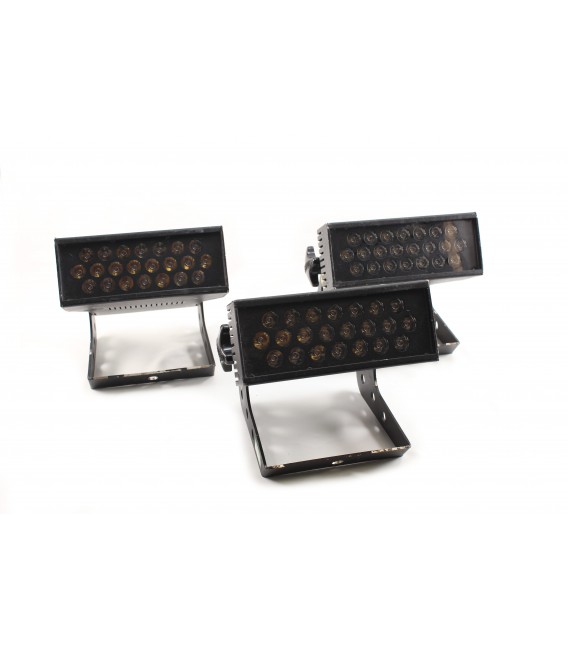

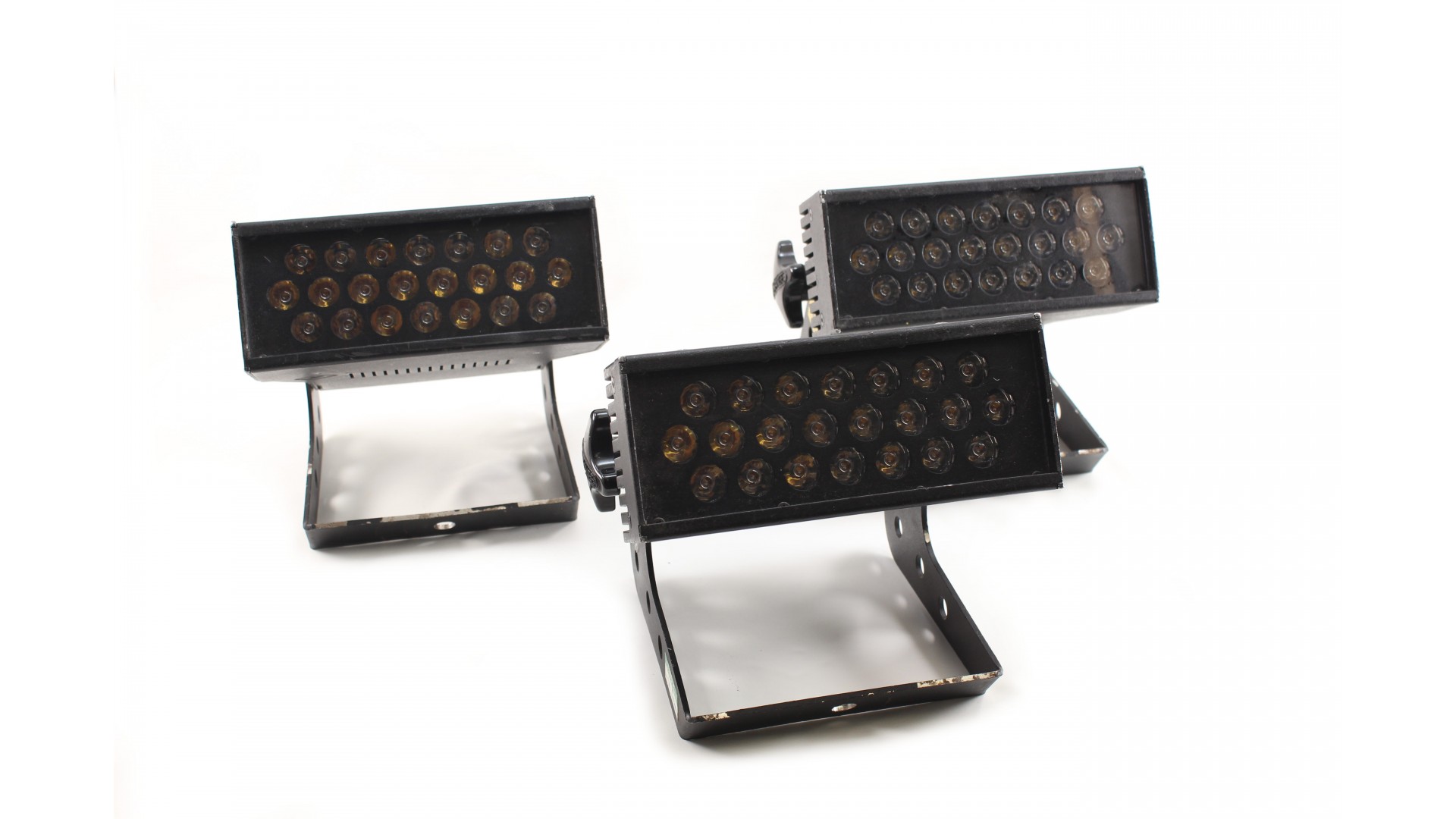

État : Projecteurs d'occasion, état général correct, ayant eu une première vie et donc quelques traces d'usure. Tous les projecteurs sont testés. Nécessite un câble d'alimentation standard PowerCON non fourni.

Features

• 22 high intensity r K2 Luxeon emitters
• Highest quality color binning
• LED beam angle 8 full angle (various shape diffusion kit available)
• Extensive color palette
• Light shapping diffusion lenses available to vary output beam angle

Preset Programming

• Pre-programmed with 2 overlapping sets of effects, each with 31 patterns
• High frequency strobing up to 28 frames per second (variable up to 10min)
• Programmable offset for synchronizing effects over multiple fixtures
• Provides an alternative projection medium for video manipulation software

Control

• Selectable dimming curve option including a new smooth dimmer curve that emulates dimming of a tungsten lamp

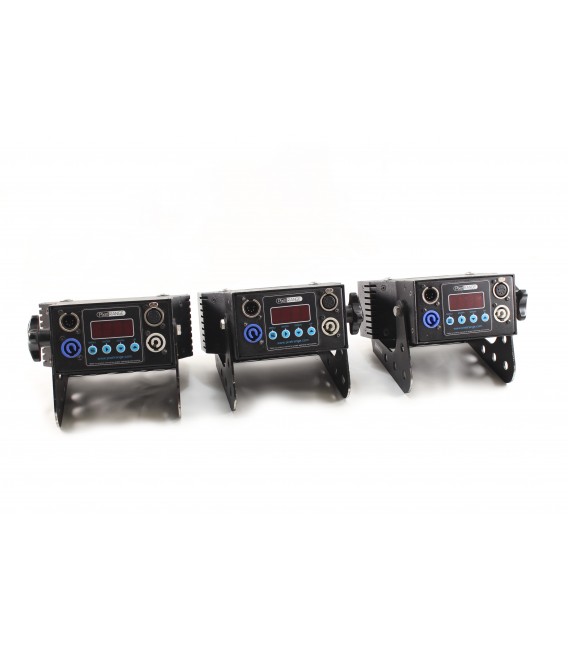

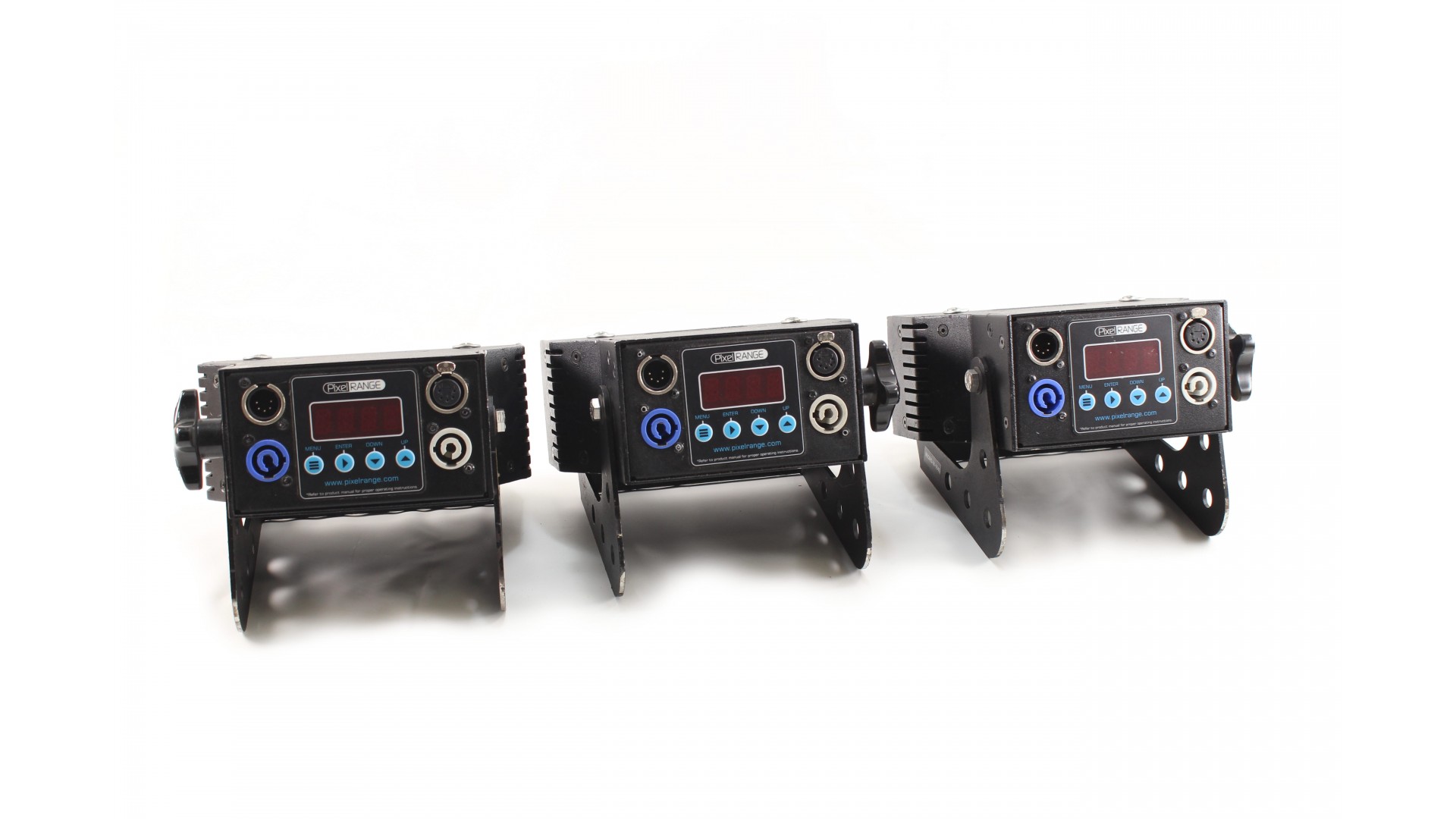

• 4 digit alpha-numeric display indicates fixture address and menu functions
• Features real time readout display
• DMX 512 input and output 5pin XLR standard
• Master/slave capabilities
• Default factory reset (simple 2 button reset)
• RDM ready
• Selectable DMX address

Cooling

• Proprietary patent pending heat management system, based around a substantial heat sink construction
• Internal quiet fan cooling system

Construction

• Robust housing suitable for both permanent and temporary applications
• Powder coated black

Weight

• With yoke 2.2kg
• Without yoke 1.9kg

Dimensions

• 206mm length x 166mm width x 84mm height

Electrical

• Auto ranging 100-250 vac power supply 50-60 hz
• Power via a Powercon 20A connectors, power can be daisy chained
• Data via 5pin XLR chassis mounted connectors, data can be daisy chained
• Low power consumption (66 watts at full intensity) virtually no heat generated
